Eco-Worthy 3.5kW Home Backup Solar Power Bundle

Package Includes:

48V 3500W All in One Inverter | 5.12kWh Lithium Battery

1 x 48V 100Ah Serve Rack Lithium Battery
1 x 48V 3500W All-in-One Inverter
1 Pair Battery-to-Inverter Connection Cable
1 Pair of Battery Parallel Cables

48V 3500W All in One Inverter |10.24kWh Lithium Battery

2 x 48V 100Ah Serve Rack Lithium Battery
1 x 48V 3500W All-in-One Inverter
1 Pair Battery-to-Inverter Connection Cable
2 Pairs of Battery Parallel Cables

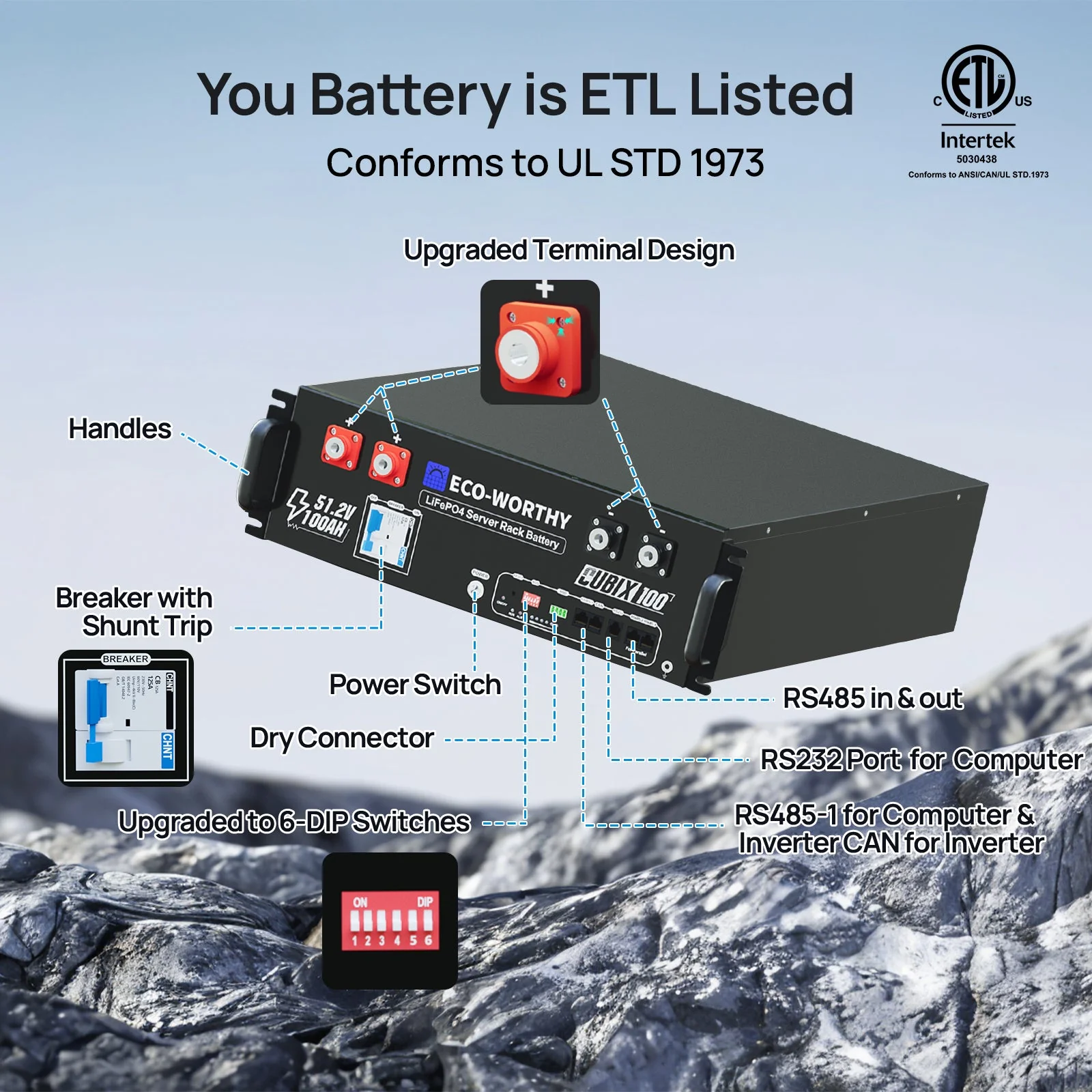

48V(51.2V) 100AH SERVE RACK LITHIUM BATTERY

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Discharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 56.1*48.3*14.3cm (22.09*19.02*5.63inch)
Battery Weight: 47kg(103 lbs)	Each battery comes with a pair of battery parallel cables

Certification：UL1973 | UL9540A | CEC LISTED

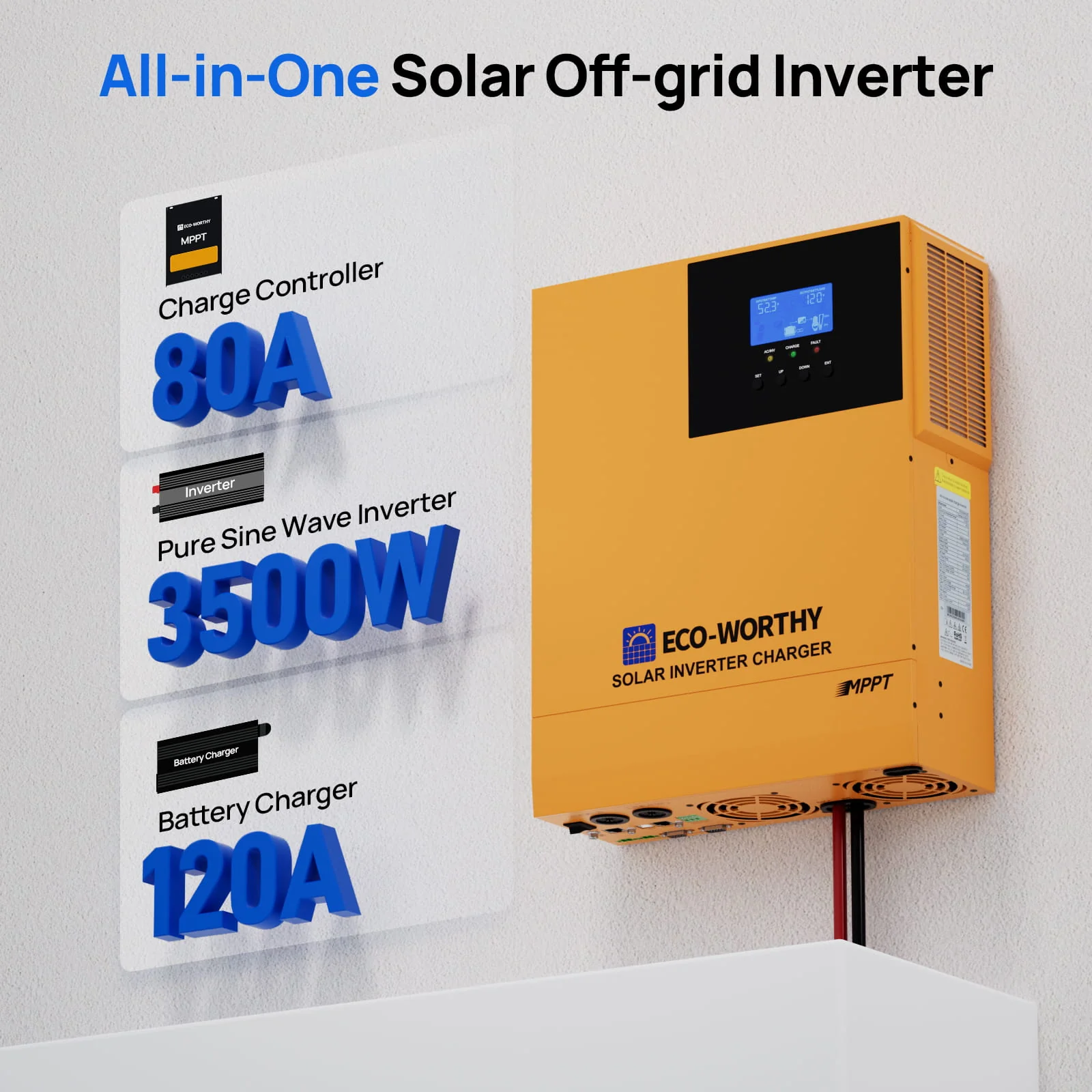

3500W 48V Off-Grid Inverter

AC Input Mode
Rated Input Voltage: 110/120VAC	Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect)	Overload/Short Circuit Protection: Circuit breaker
Efficiency: 92%	AC Reverse Protection: Available
Max Bypass Overload Current: 40A
Invert Mode
Output Voltage Waveform: Pure Sine Wave	Rated Output Power: 3500W
Rated Output Voltage: 120VAC	Peak Power: 6000W
Bypass Breaker: 40A	Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V	Power Saving Mode: Load ≤50W
AC Charging Mode

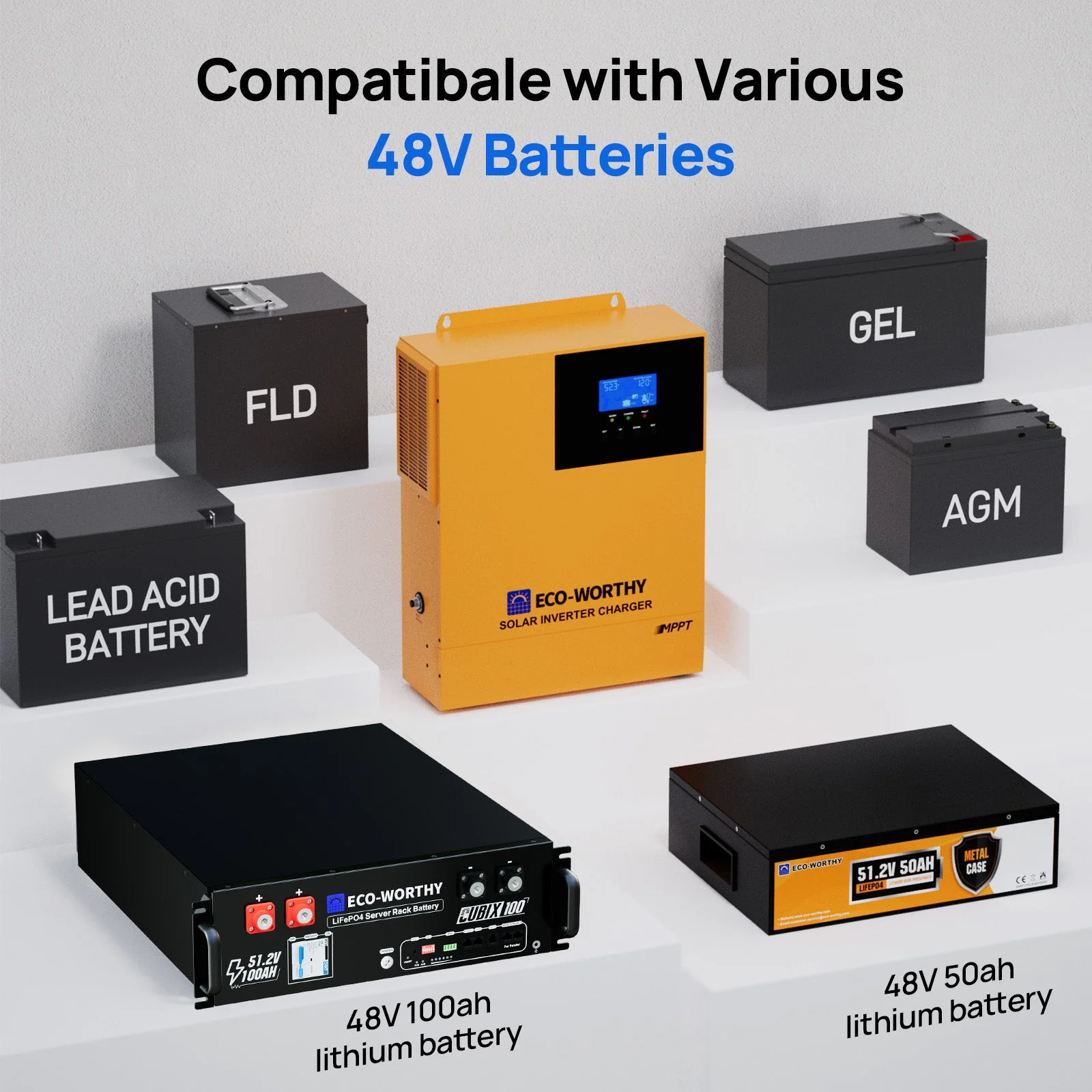

Battery Type: Lead acid or lithium battery	Max Charge Current: 40A
Charge Voltage Range: 40-60VDC	Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging Mode
Max Input Power: 4400W	PV Charging Current Range：0-80A(can be set)
Max PV Open Circuit Voltage: 145VDC	PV Operating Voltage Range: 60-145VDC
MPPT Voltage Range: 60-115VDC	Battery Voltage Range: 40-60VDC
Max Output Power: 4200W	Charging Short Circuit Protection: Blown fuse



Package Includes:

Each battery comes with 1 pair of parallel cables/1 x Screws Bag & Terminal Cover/1 x Grounding wire/1 x Battery-Battery communication Cable;The other package contains a 5kW inverter, which also comes with its own wiring. Generally, there is no need to purchase additional cables.
