Eco-Worthy 5000W Solar Off-grid AIO inverter | 48Vdc to 120Vac | 5500W@500V PV Input | UL1741
5000W Solar Off-grid AIO inverter

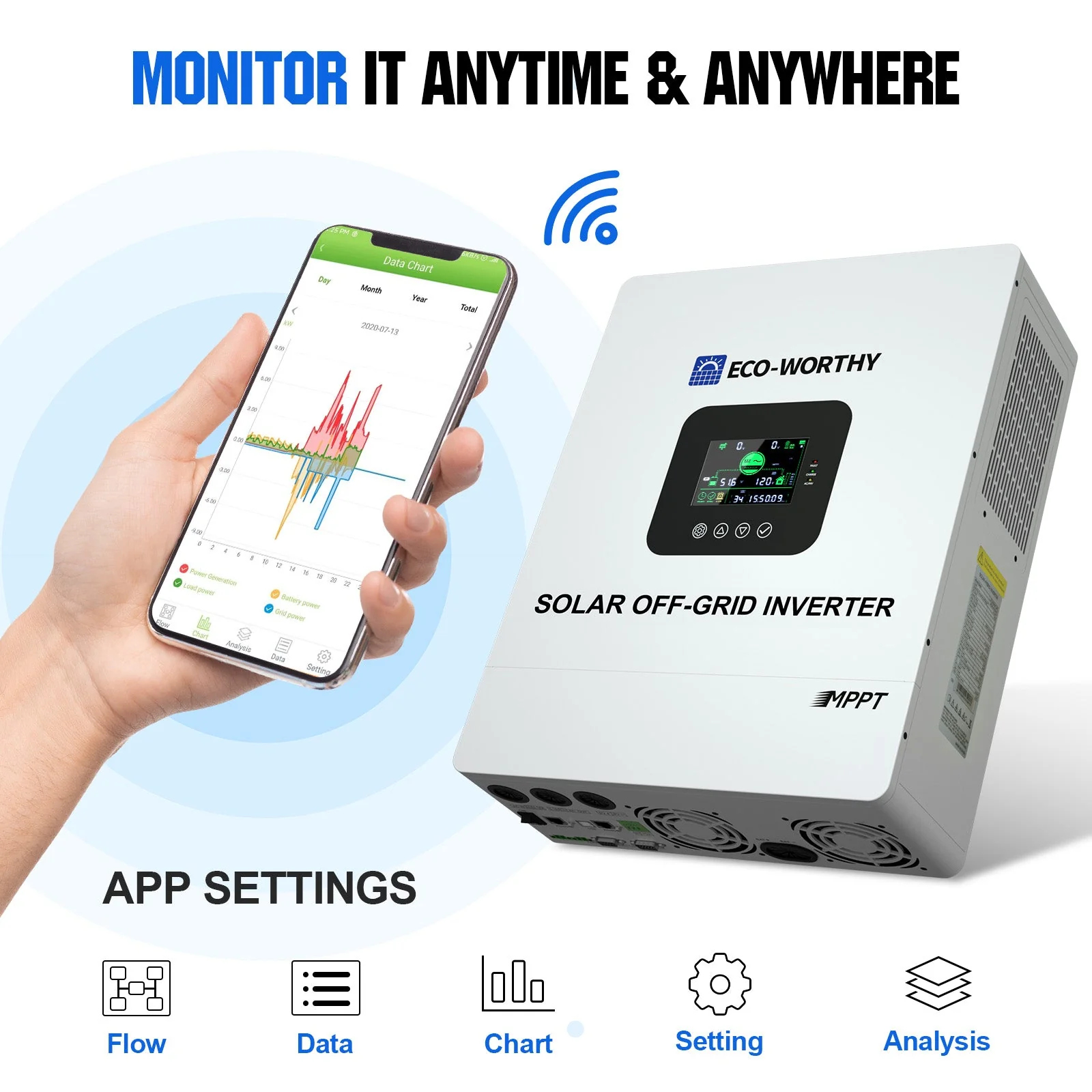

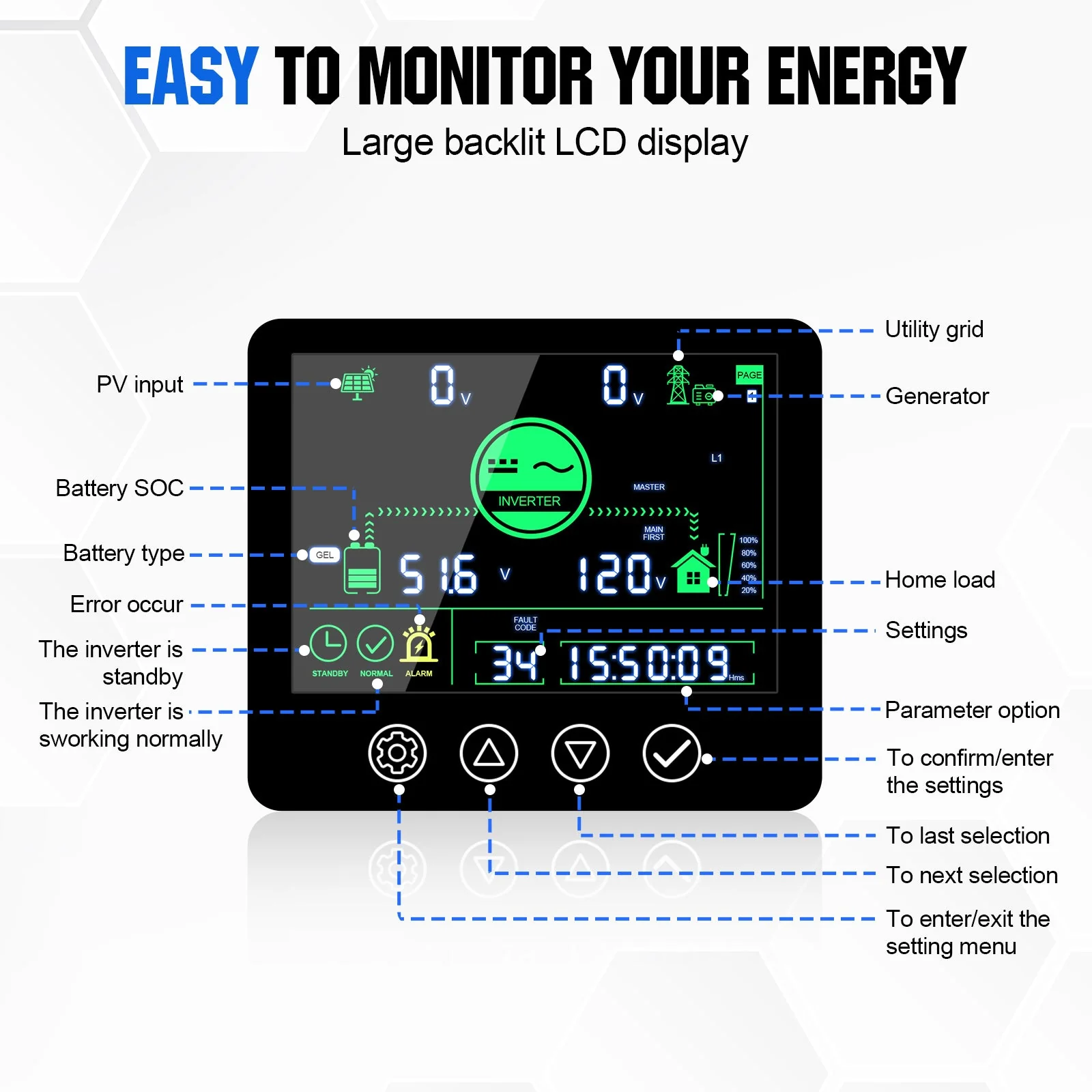

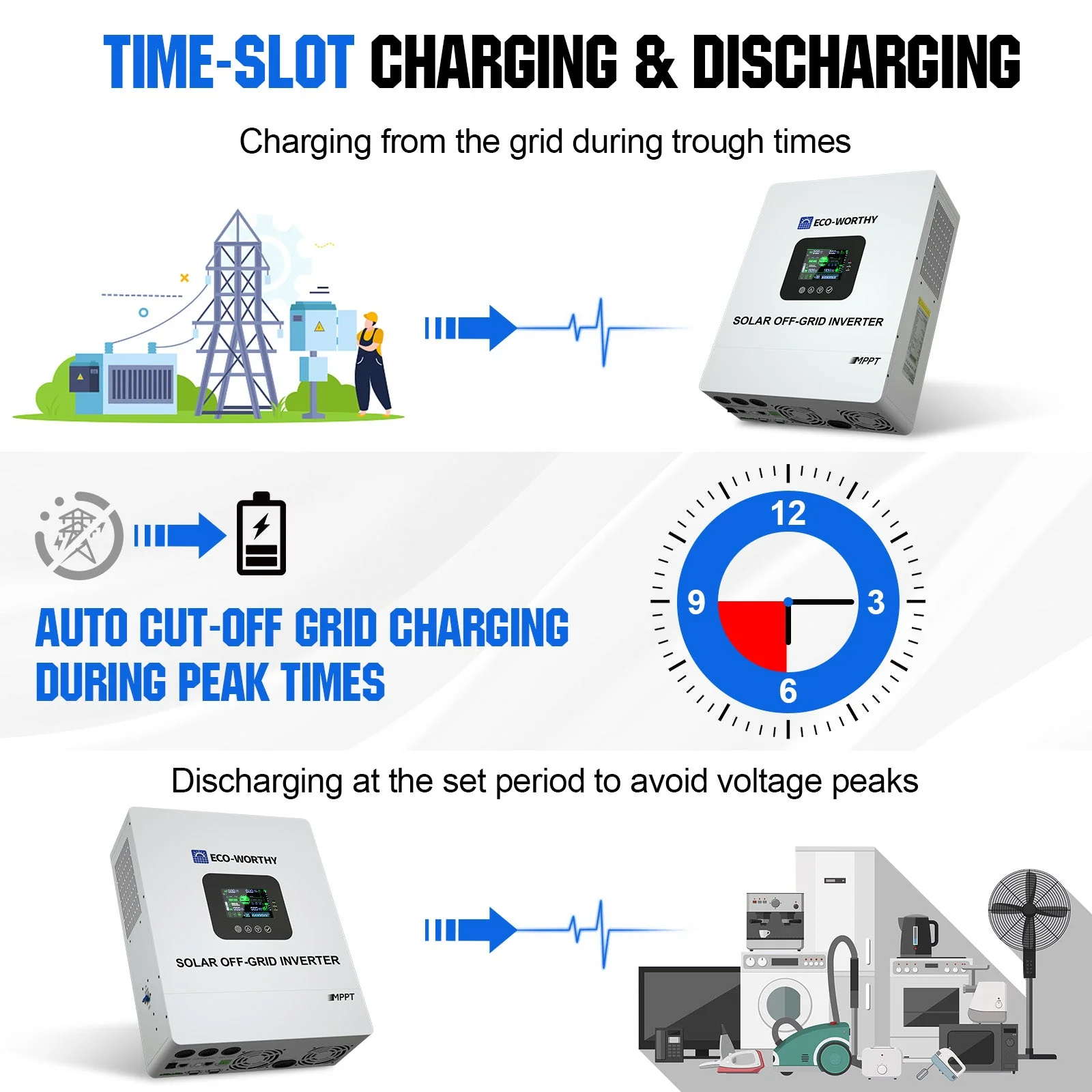

5000W solar off-grid AIO inverter supports up to 6 units in parallel (max 30kW) with flexible single or split-phase output (120V/240V). It can operate battery-free, directly using solar power to supply loads. Featuring multiple charging modes and output priorities, it optimizes energy use and reduces costs. With high PV input specs, intelligent protections, an LCD display, and remote app monitoring, it ensures safe, stable, and convenient operation.
General Specification |
| AC Input Mode |
| Rated Input Voltage: 110/120VAC |
| Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) |
| Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% |
| AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
| Invert Mode |
| Output Voltage Waveform: Pure Sine Wave |
| Rated Output Power: 5000W |
| Rated Output Voltage: 120VAC |
| Peak Power: 10000W |
| Bypass Breaker: 63A |
| Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V |
| Power Saving Mode: Load ≤25W |
| AC Charging Mode |
| Battery Type: Lead acid or lithium battery |
| Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC |
| Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode |
| Max Input Power: 5000W |
| PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC |
| PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC |
| Battery Voltage Range: 40-60VDC |
| Max Output Power: 5000W |
| Charging Short Circuit Protection: Blown fuse |
Certification |
| UL1741 |
Warranty |
| 1 Year Warranty |
