Eco-Worthy 6KW Solar Off-grid Split-phase AIO Inverter | 48Vdc to 120Vac/240Vac | 9kW@500V PV Input
6kW Off-grid Split-phase AIO Inverter
Inverter |
| Rated Output Power: 6,000W |
| Max. Peak Power:12,000w |
| Rated Output Voltage:120/240V(Single-phase/Split-phase) |
| Motor Loading Capacity:4.8HP |
| Rated Frequency:60Hz |
| Output Waveform: Pure Sine Wave |
| Switching Time:10ms(typicalvalue) |
Mains/Generator Input |
| AC Input Voltage Range: 180VAC-280VAC |
| AC Input Frequency:60Hz |
| Bypass Overload Current:45A |
Battery |
| Battery Type: Lithium battery/Lead-acid battery/User-defined |
| Rated Battery Voltage:48V |
| Voltage Range:40~60V |
| Maximum Photovoltaic Charging Current: 120A |
| Maximum Mains/Generator Charging Current:100A |
| Maximum Hybrid Charging Current:120A |

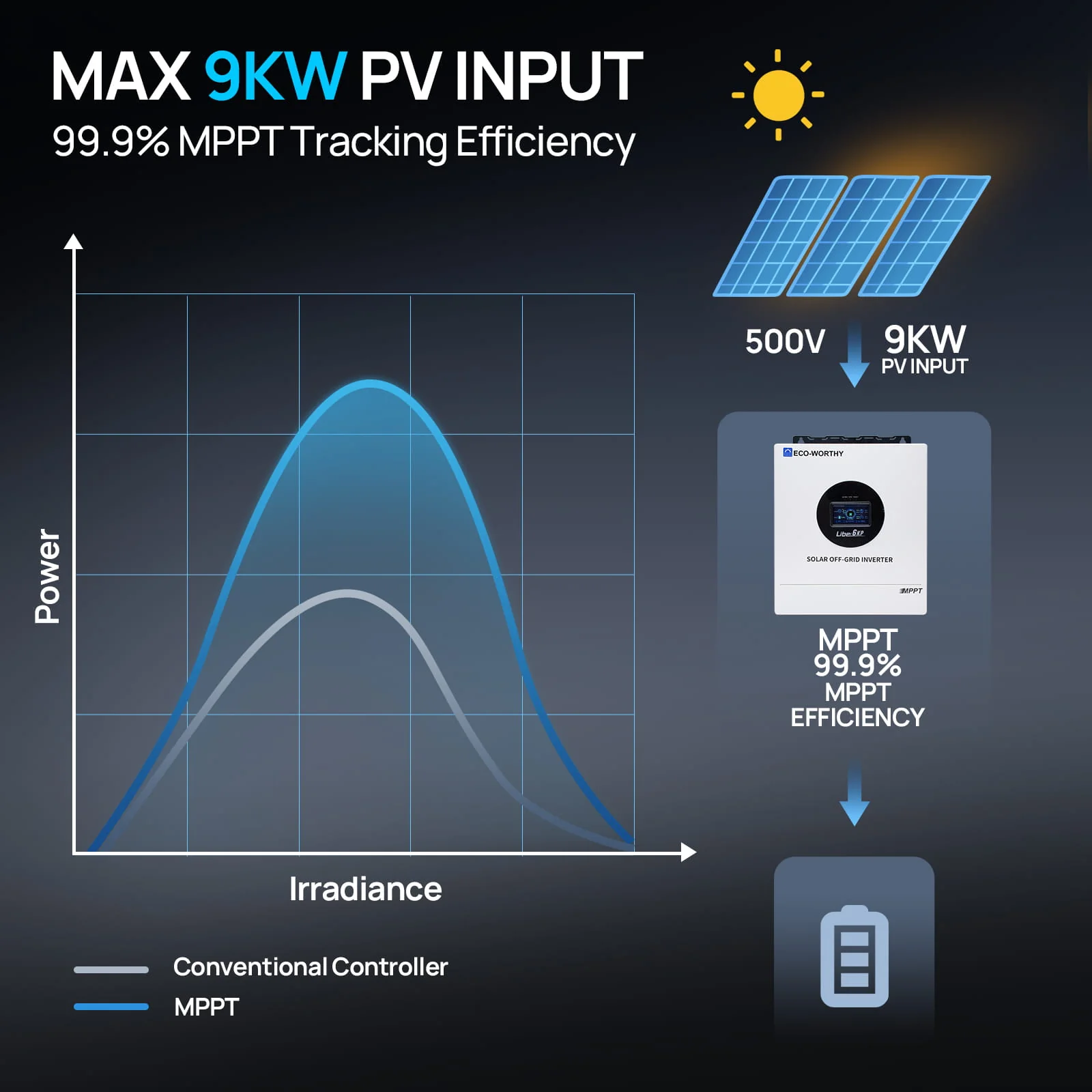

Solar Input |
| Number of MPPT Routes:1 |
| Maximum Input Power:9000w |
| Maximum Input Current:27A |
| Maximum Open-circuit Voltage:500V |
| MPPT Operating Voltage Range:125-425V |
Warranty |
| 2-Year Warranty |
General Specification |
| Dimensions: 472*412*130mm (Without Bracket) |
| Weight: 16kg（（Net weight） |
| Protection Level: IP20，For indoor use only |
| Ambient Temperature: -10~55℃,>45℃ derating |
| Noise:≤45dB |
| Cooling Method: Intelligent Air Cooling |

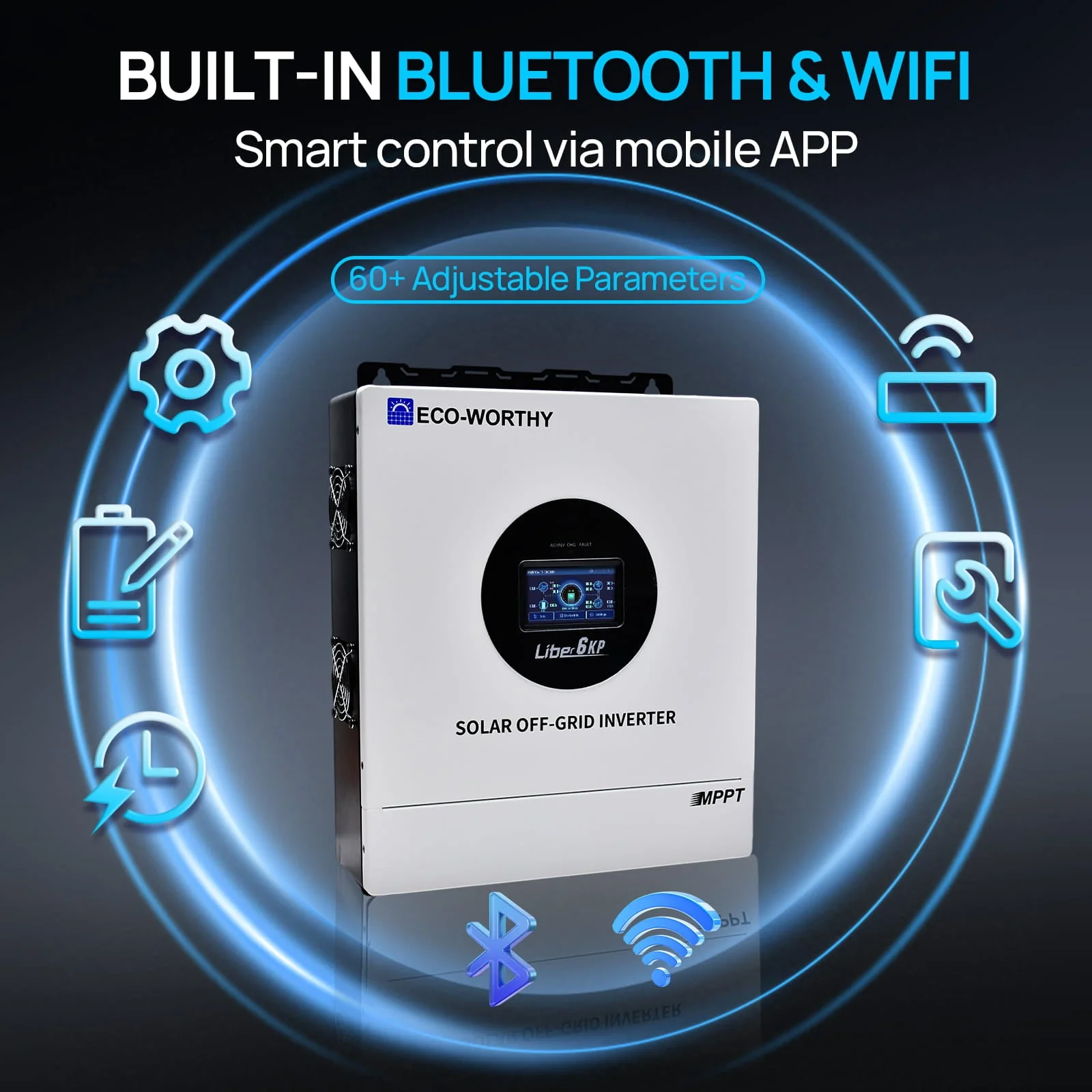

| Communication module: RS485/CAN//Wifi/Bluetooth |
