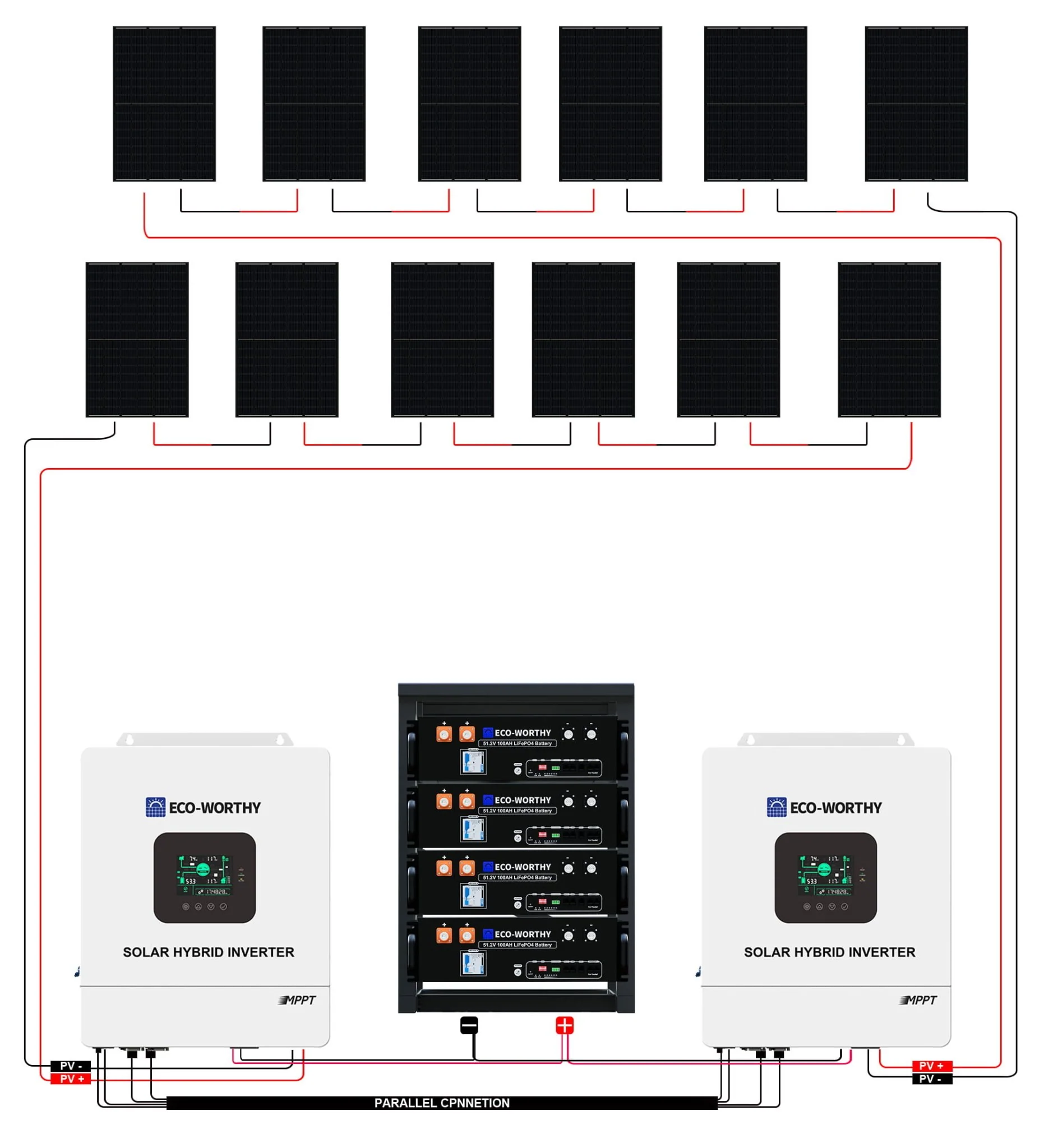

Package Includes:

\n

5040W PV &20.48kWh Battery
12x 420W N-Type Mono Solar Panels
2x 5000W 48V Split Phase Solar Hybrid Inverter Charger
2x 5M 12AWG Extension Cable with MC4
4x 48V 100Ah Server Rack LiFePO4 Lithium Batteries
1x 6-Layer Battery Rack

\n

420W N-Type Monocrystalline Solar Panel

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Rated Power: 420WSolar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 32.44VOpen Circuit Voltage(Voc): 38.73V
Short circuit current: 14.01AMaximum current: 12.95A
Output Tolerance: ±3%Temperate coefficient of Isc:0.05%/℃
Temperate coefficient of Voc: --0.29%/℃Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frameWeight: 45.3 lbs(20.5 kg)
Size: 67.79x44.64x1.18in (1722*1134*30mm)
\n



\n

5000W 48V Split Phase Solar Hybrid Inverter Charger

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Solar Charging Mode　
PV Charging Current Range: 100AMPPT Voltage Range: 120-450VDC
Max Input Power: 5500WBattery Voltage Range: 40-60VDC
Invert Mode　
Output Waveform: Pure Sine WaveRated Output Power: 5000W
Rated Output: 110V/120VAC 50Hz/60HzRated Battery Input Voltage: 48V
Peak Power: 10000W　
\n
48V(51.2V) 100Ah Server Rack LiFePO4 Lithium Battery
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Battery Capacity: 100AhBattery Power: 5120Wh
Rated Voltage: 51.2VVoltage Range: 40~58V
Maximum Charge/ Discharge Current: 100ACharge Temperature Range: 0-55℃
Discharge Temperature Range:﹣20－55℃Maximum Charge Voltage: 58.4V
Screw size: M8Battery Size: 56.1*48.3*14.3cm
(22.09*19.02*5.63inch)
Battery Weight: 47kg(103 lbs)Each battery comes with a pair of battery parallel cables
\n

Certification：UL1973 | UL9540A | CEC LISTED

\n

5M 12AWG  Solar Cable Wires with MC4

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Cable Type: Connecting Solar Panels to Charge ControllersRating Voltage: 600/1000V
Length: 5 meters（16 ft）Conductor: Tinned copper wire
AWG: 12Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 ProtectionTemperature: -40°F to +185°F
Connector: MC4　
\n


Z Mounting Brackerts

\n\n\n\n\n\n\n\n
24 pieces of Z-shaped solar panel brackets
