4680W 48V (24x Bifacial 195W) Complete Off Grid Solar Kit | 20.48kWh Battery Capacity | 120VAC/240VAC 5000W Split Phase Output

🚚 Free Worldwide Shipping on All Orders!Shop Now

\n\n

Package Includes:

4680W PV &20.48kWh Battery
24x Bifacial 195W Mono Solar Panels
2x 5000W 48V Split Phase Solar Hybrid Inverter Charger
1x 5M 8AWG Extension Cable with MC4
4x 5M 12AWG Solar Cables with MC4
1x Y MC4 Connector
24x Z Mounting Brackets
4x 48V 100Ah Server Rack LiFePO4 Lithium Batteries
1x 6-Layer Battery Rack

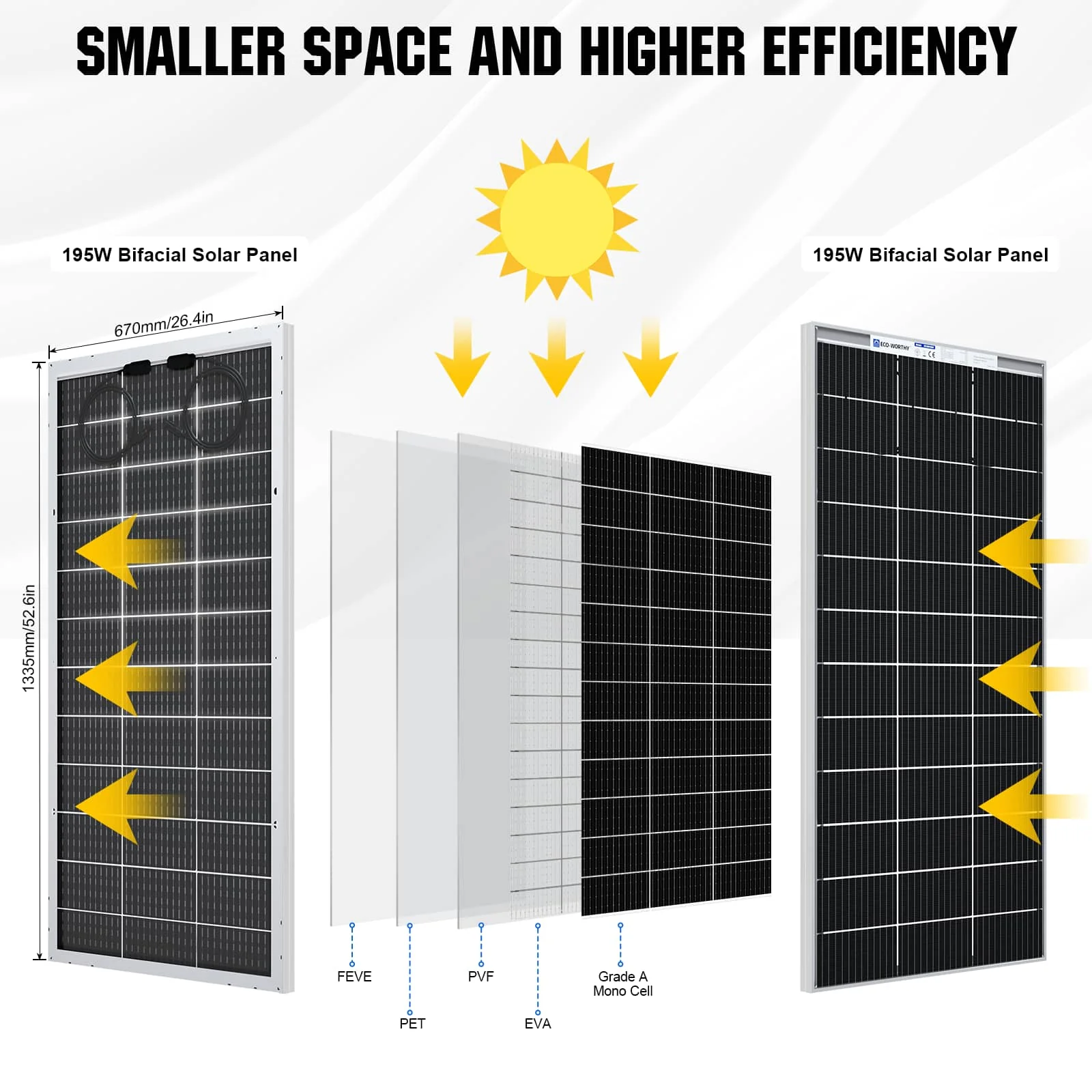

Bifacial 195W Monocrystalline Solar Panel

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V	Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A	Maximum current: 9.85A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (133567035mm)

5000W 48V Split Phase Solar Hybrid Inverter Charger

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Solar Charging Mode
PV Charging Current Range: 100A	MPPT Voltage Range: 120-450VDC
Max Input Power: 5500W	Battery Voltage Range: 40-60VDC
Invert Mode
Output Waveform: Pure Sine Wave	Rated Output Power: 5000W
Rated Output: 110V/120VAC 50Hz/60Hz	Rated Battery Input Voltage: 48V
Peak Power: 10000W

48V(51.2V) 100Ah Server Rack LiFePO4 Lithium Battery

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Discharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 56.148.314.3cm (22.0919.025.63inch)
Battery Weight: 47kg(103 lbs)	Each battery comes with a pair of battery parallel cables

5M 12AWG Solar Cable Wires with MC4

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Cable Type: Connecting Solar Panels to Charge Controllers	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4

5M 12AWG Solar Extension Cable Wires with MC4-MC4

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Cable Type: Connecting Solar Panel to Solar Panel In Parallel	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4

Z Mounting Brackerts

\n\n\n\n\n\n\n\n

24 pieces of Z-shaped solar panel brackets

Y Rarallel Branch Connectors

\n\n\n\n\n\n\n\n\n\n\n\n

Model: 12AWG	Rated Current: 30A
Test Voltage: 6000V
